Product :

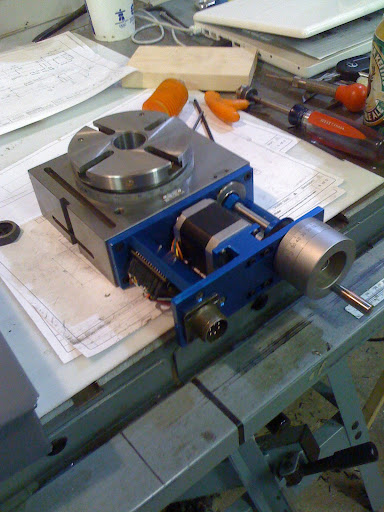

CNC Rotary Table
|
| |
|
| |
|
| |
CNC Rotary Table |
| |
Our CNC Rotary Table, Rotary Index Table offers the solution to achieve the high precision machining of parts. |
| |
|
| |
| Model Number |
CNC-220 |
| Faceplate Diameter |
220mm |
| Centre Height |
140mm |
| Through Hole Diameter |
40 ISO
Ø26 THRU |
| Rotational Accuracy ** |
±20 secs |
| Repeat Accuracy |
± 6 secs |
| Locking System |
Air / Hydraulic |
| Locking Pressure |
80 bar (max) |
| Air input |
6 bar |
| Clamping Force |
1140Nm |
| Keyway size |
18mm |
| Load Capacity |
100kg |
| Gear Ratio (Final Drive) |
90:1 |
| Pulley ratio |
2:1 |
| Net Weight (approx) |
85kg |
| Minimum Increment |
0.001 deg |
| Rotational Torque (6Nm motor) |
432Nm |
|
| |
|
| |
|
|
